2009 Yamaha TT-R110E

09 TTR110

Now until September 30, 2010
$174.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form

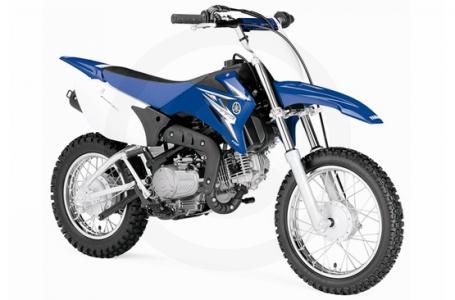

Click here to view full image.
Team Yamaha Blue/White
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Adult Supervision Required Unless You Are One.


TT-R 110E has a push button electric starter, four-stroke powered engine, seat height of only 26.4 inches with 7.1 inches of ground clearance, class exclusive four-speed automatic-clutch transmission great for learning or big fun for kids or adults.


Big fun for the whole family, the all-new TT-R110 begs to be ridden by everyone from bigger kids to adults.

    Key Features
    • Convenient electric starter for effortless starting.
    • Big fun for the whole family, the YZ-styled, four-stroke-powered TT-R110 begs to be ridden by everyone from bigger kids to adults.
    • A seat height of only 26.4 inches makes this one accessible to most riders, but 7.1 inches of ground clearance and great suspension at both ends mean it can go places.
    • Class-exclusive four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain.
    Engine Features
    • Torquey/powerful 110cc air-cooled SOHC four-stroke powerplant is tuned for maximum off-road performance in a wide range of trail conditions.
    • Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4000 rpm, max horsepower at 7500 rpm.
    • Four-speed gearbox with automatic clutch has the right gear for wherever you ride.
    • Convenient electric starter for effortless starting.
    • CDI ignition system is ultra-reliable and never needs maintenance.
    • Automatic cam chain tensioner means minimal maintenance and longer engine life.
    • Easy-access, tool-free air filter adds extra convenience during maintenance.
    • Lightweight exhaust system features quiet, USFS-approved spark arrestor.
    Chassis/Suspension
    • Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance.
    • 31mm fork with high-tech internals including a damper valve with oil lock provides excellent damping, great bottoming resistance and 4.5 inches of smooth travel.
    • Monocross rear suspension pivoting on a strong, 12mm shaft, along with a gusseted steel swingarm, provide excellent rear wheel control through 4.3 inches of travel.
    • Die-cast aluminum top triple clamp helps provide light, precise handling and looks great, too.
    • 26.4-inch seat height and 7.1 inches of ground clearance help inspire confident performance on rugged trails.
    • Front and rear drum brakes deliver strong, dependable stopping power.
    • 14-inch front and 12-inch rear wheels inspire great rider confidence by keeping the seat low and the steering light.
    • Knobby tires offer superb grip and exceptional wear.
    Additional Features
    • Long, YZ-style seat is low, comfortable and allows easy rider movement.
    • Team Yamaha–inspired colors, graphics and front and side number plates create styling similar to larger YZ lineup.
    • Large, folding, cleated footpegs provide excellent footing, even in wet or muddy conditions.
    • Key-type ignition switch deters unauthorized riding.
    Engine
    • Type: 110 cc air-cooled 4-stroke, SOHC
    • Bore x Stroke: 51.0 mm x 54.0 mm
    • Compression Ratio: 9.3:1
    • Carburetion: Mikuni® VM16
    • Ignition: CDI
    • Transmission: Constant-mesh 4-speed/wet, multiple disc
    • Final Drive: Chain drive
    Chassis
    • Suspension/Front: Telescopic fork, coil spring/oil damper, 4.5-in. travel
    • Suspension/Rear: Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in. travel
    • Brakes/Front: 95 mm drum
    • Brakes/Rear: 110 mm drum
    • Tires/Front: 2.50-14-4PR
    • Tires/Rear: 3.00-12-4PR
    Dimensions
    • Length: 61.6 in.
    • Width: 26.8 in.
    • Height: 36.3 in.
    • Seat Height: 26.4 in.
    • Wheelbase: 42.5 in.
    • Ground Clearance: 7.1 in.
    • Fuel Capacity: 1.0 gal.
    • Wet Weight: 158 lbs.
    Warranty
    • Warranty: 90 Day (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 110 cc air-cooled 4-stroke, SOHC
    Displacement 110 cc
    Bore and Stroke 51.0 mm x 54.0 mm
    Cooling Air
    Compression Ratio 9.3:1
    Fuel System Mikuni® VM16
    Ignition CDI
    Chassis
    Front Suspension Telescopic fork, coil spring/oil damper, 4.5-in. travel
    Front Brakes 95 mm drum
    Front Tire 2.50-14-4PR
    Rear Suspension Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in. travel
    Rear Brakes 110 mm drum
    Rear Tire 3.00-12-4PR
    Dimensions
    Dry Weight 158 lbs.
    Fuel Capacity 1.0 gal.
    Wheelbase 42.5 in.
    Ground Clearance 7.1 in.
    Seat Height 26.4 in.
    Transmission
    Transmission Constant-mesh 4-speed/wet, multiple disc
    Final Drive Chain drive
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model TT-R110E
    Style Off-Road
    MSRP* $1,949.00
    Chassis
    Front Suspension Telescopic fork, coil spring/oil damper, 4.5-in. travel
    Front Brakes 95 mm drum
    Front Tire 2.50-14-4PR
    Rear Suspension Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in. travel
    Rear Brakes 110 mm drum
    Rear Tire 3.00-12-4PR
    Dimensions
    Dry Weight 158 lbs.
    Fuel Capacity 1.0 gal.
    Wheelbase 42.5 in.
    Ground Clearance 7.1 in.
    Seat Height 26.4 in.
    Trail
    Rake
    Engine
    Engine Type 110 cc air-cooled 4-stroke, SOHC
    Displacement 110 cc
    Bore and Stroke 51.0 mm x 54.0 mm
    Cooling Air
    Compression Ratio 9.3:1
    Fuel System Mikuni® VM16
    Ignition CDI
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)
    Transmission
    Transmission Constant-mesh 4-speed/wet, multiple disc
    Final Drive Chain drive
